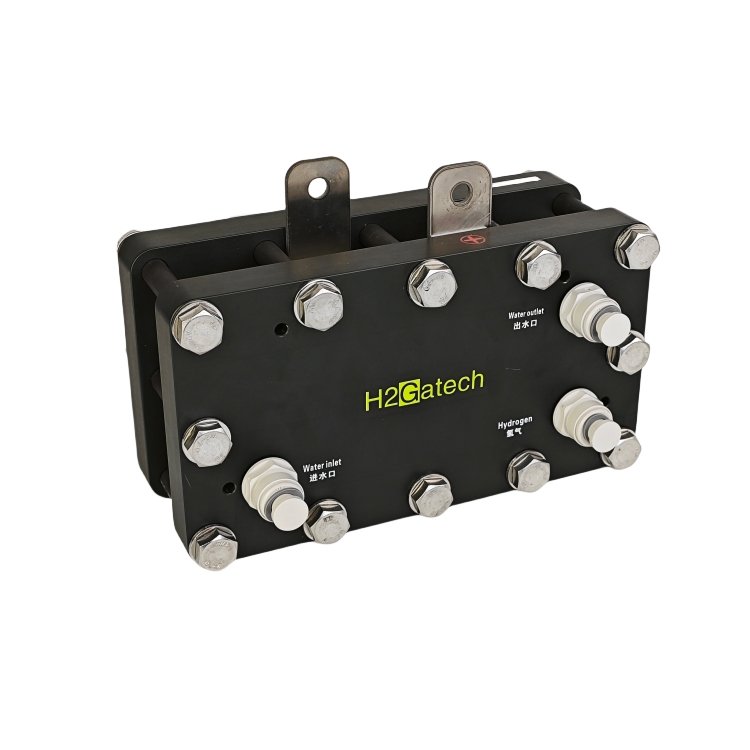

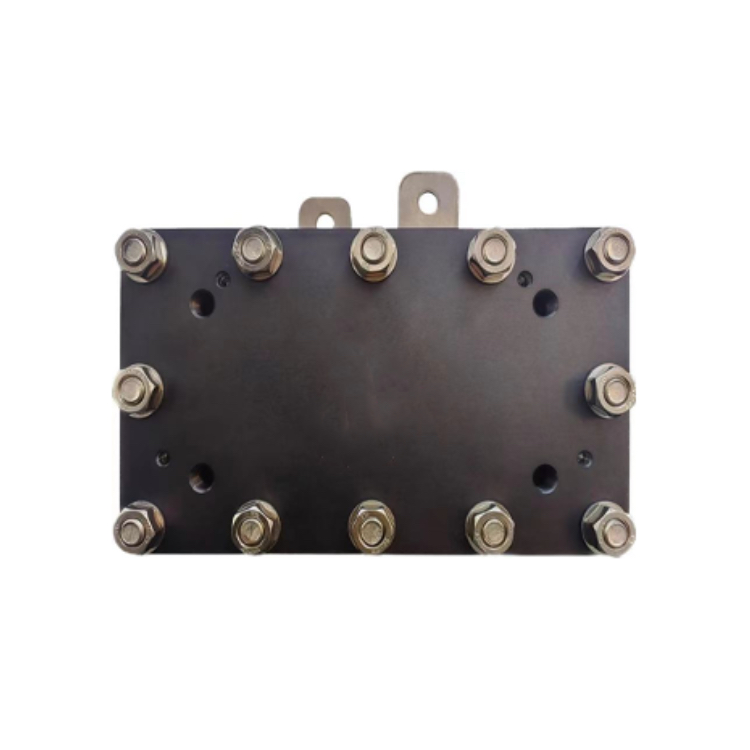

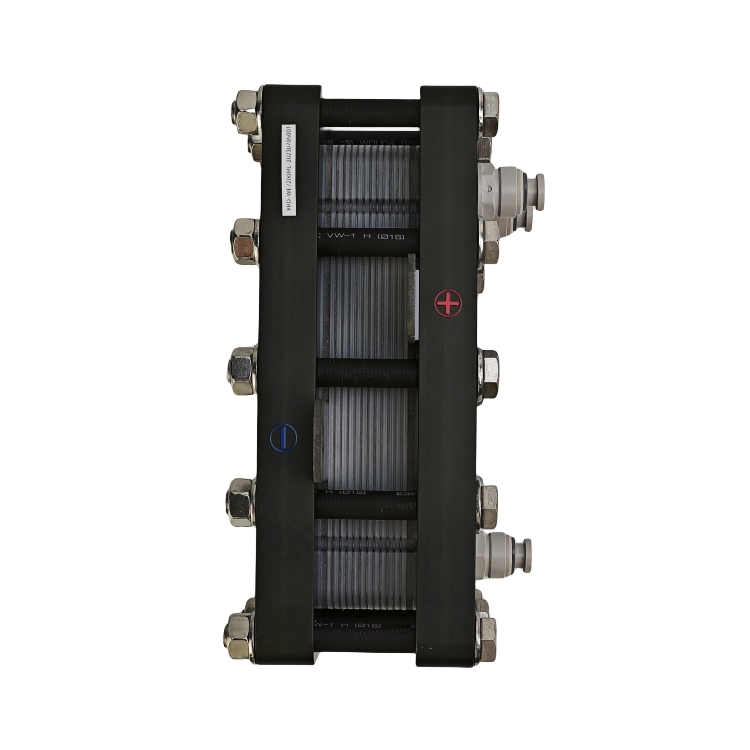

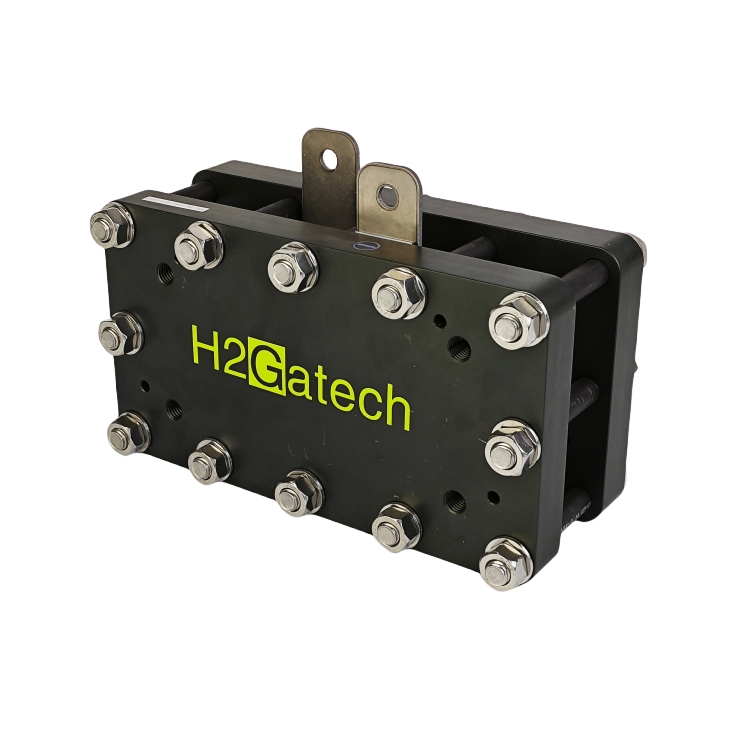

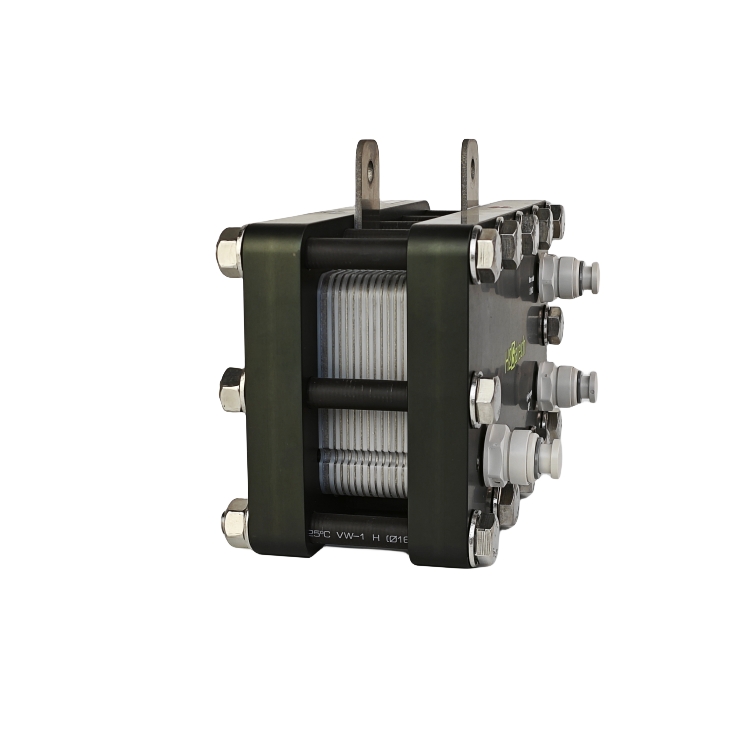

制氢电解槽（0.5–20 Nm³/h）
极永新能源小型电解槽专为灵活性与精确性而设计，具备快速启动、运行稳定及易于集成至实验室和示范环境的优势。该系统可实现对运行条件的精准控制，是材料评估、膜电极测试及性能验证的理想选择。
凭借紧凑的系统设计及较低的安装要求，该系列产品为分布式制氢提供高效解决方案，同时支持未来规模化扩展与技术开发。
用于绿色制氢的先进PEM水电解
H2Gatech PEM water electrolysis systems enable high-efficiency, zero-emission hydrogen production through advanced electrochemical technology. By splitting water into hydrogen and oxygen using renewable electricity, our systems deliver high-purity hydrogen with fast dynamic response and stable performance. Experience reliable, scalable, and clean hydrogen generation for the next generation of energy solutions.
单电池片数
The electrolyzer stack is composed of multiple electrochemical cells, configured according to the required hydrogen production capacity.
氢气压力
Hydrogen is produced at low to medium pressure, suitable for laboratory use and distributed hydrogen applications.
环境温度
Designed to operate reliably under typical indoor and outdoor ambient conditions.
加湿
The system adopts a self-humidifying design, simplifying system integration and operation.
电解槽堆称重
Compact and lightweight stack design, suitable for laboratory and distributed installations.
电源接口
Designed for connection with an external DC power source or rectifier system.
系统效率
High electrolysis efficiency optimized for small-scale hydrogen production and testing applications.
外接电源
External power supply can be provided by H2Gatech or sourced by the customer.
可再生能源并网
Experience the efficiency of PEM water electrolysis for clean hydrogen generation. PEM water electrolyzers directly convert electrical energy into high-purity hydrogen through an advanced electrochemical water-splitting process, offering a zero-emission and highly efficient alternative to conventional hydrogen production methods. Whether integrated with renewable energy sources such as solar and wind or deployed as an on-demand hydrogen supply for laboratories, energy storage, or industrial applications, PEM electrolyzers deliver fast response, stable performance, and scalable output. H2Gatech provides this green hydrogen production solution in a compact, reliable, and low-maintenance system, making sustainable hydrogen accessible across diverse operating environments.
高效PEM水电解系统
Modern energy systems demand cleaner and more efficient hydrogen production. H2Gatech PEM water electrolyzers enable green hydrogen generation through advanced PEM water electrolysis, converting electricity into high-purity hydrogen with fast response and stable performance. Designed for renewable energy integration and on-site hydrogen supply, our PEM electrolyzer systems deliver scalable, low-maintenance solutions for a sustainable hydrogen future.
应用领域

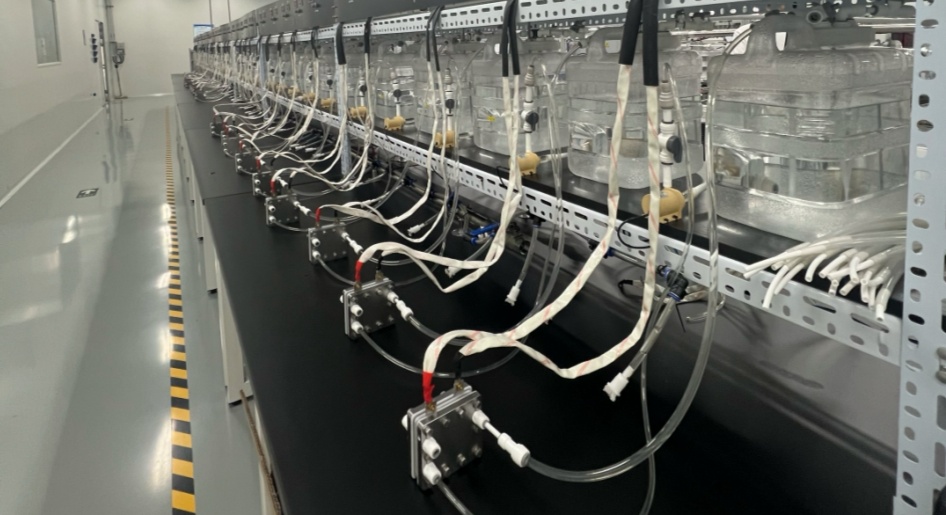

该系列电解槽系统主要应用于技术示范、研究开发及分布式制氢场景。典型用途包括实验室供氢、燃料电池测试、中试项目以及小规模或内部用氢的现场制氢。这些系统被高校、科研院所、燃料电池开发商及早期氢能项目广泛采用，其核心需求在于系统灵活性、性能评估及组件优化。
电解槽制造商
以极永新能源先进的水电解技术，推动绿色氢能转型。我们制造高性能PEM水电解槽，旨在实现高效、稳定、可扩展的氢气生产。我们的电解槽系统可将可再生电力转化为清洁氢气，助力低碳、可持续的能源未来。
极永新能源电解槽专为高效率、高耐久性及灵活系统集成而设计，能够满足示范项目、工业制氢及能源级应用的需求。与极永新能源合作，借助我们为长期性能而打造的可靠电解解决方案，加速您的制氢项目进程。
| 项目 | H2G-0.5 | H2G-1 | H2G-1.5 | H2G-2 |
|---|---|---|---|---|
| 氢气产量 | 0.5 m³/h | 1 m³/h | 1.5 m³/h | 2 m³/h |
| 氧气产量 | 0.25 m³/h | 0.5 m³/h | 0.75 m³/h | 1 m³/h |
| 膜电极尺寸 | 140 × 70 mm | 140 × 70 mm | 140 × 70 mm | 140 × 70 mm |
| 单池片数 | 9 | 17 | 25 | 34 |
| 工作电流 (DCA) | 147 | 147 | 147 | 147 |
| 工作电压 (DCV) | 16.2–22.5 | 30.6–42.5 | 45–62.5 | 61.2–85 |
| 氧气进口 | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） |
| 氧气出口 | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） |
| 氢气出口 | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） |
| 氧气侧耐压 | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa |
| 氢气侧耐压 | 0–3 MPa | 0–3 MPa | 0–3 MPa | 0–3 MPa |
| 水泵流量 | 5.4 L/min | 10.2 L/min | 20.4 L/min | 20.4 L/min |
| 工作温度 (°C) | 40–60 | 40–60 | 40–60 | 40–60 |
| 能耗 | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ |
| 水质要求 | 超纯水 ≥ 15 MΩ | |||
| 使用寿命 | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h |
| 产品尺寸 (mm) | 170.5 × 254 × 121.5 | 170.5 × 254 × 163.9 | 170.5 × 254 × 206.8 | 170.5 × 254 × 254 |
| 项目 | H2G-2.5 | H2G-3 | H2G-3.5 | H2G-4 |
|---|---|---|---|---|
| 氢气产量 | 2.5 m³/h | 3 m³/h | 3.5 m³/h | 4 m³/h |
| 氧气产量 | 1.25 m³/h | 1.5 m³/h | 1.75 m³/h | 2 m³/h |
| 膜电极尺寸 | 200 × 130 mm | 200 × 130 mm | 200 × 130 mm | 200 × 130 mm |
| 单池片数 | 16 | 19 | 22 | 25 |
| 工作电流 (DCA) | 390 | 390 | 390 | 390 |
| 工作电压 (DCV) | 28.8–40 | 34.2–47.5 | 39.6–55 | 45–62.5 |
| 氧气进口 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 |
| 氧气出口 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 |
| 氢气出口 | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） | 3/8"（英寸） |
| 氧气侧耐压 | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa |
| 氢气侧耐压 | 0–3 MPa | 0–3 MPa | 0–3 MPa | 0–3 MPa |
| 水泵流量 | 18 L/min | 21 L/min | 25 L/min | 28 L/min |
| 工作温度 (°C) | 40–60 | 40–60 | 40–60 | 40–60 |
| 能耗 | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ |
| 水质要求 | 超纯水 ≥ 15 MΩ | |||
| 使用寿命 | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h |
| 产品尺寸 (mm) | 386 × 387 × 176.9 | 386 × 387 × 192.3 | 386 × 387 × 207.6 | 386 × 387 × 223 |
| 项目 | H2G-5 | H2G-8 | H2G-10 | H2G-15 |
|---|---|---|---|---|
| 氢气产量 | 5 m³/h | 8 m³/h | 10 m³/h | 15 m³/h |
| 氧气产量 | 2.5 m³/h | 4 m³/h | 5 m³/h | 7.5 m³/h |
| 膜电极尺寸 | 300 × 170 mm | 300 × 170 mm | 300 × 170 mm | 300 × 170 mm |
| 单池片数 | 17 | 27 | 34 | 50 |
| 工作电流 (DCA) | 765 | 765 | 765 | 765 |
| 工作电压 (DCV) | 30.6–42.5 | 48.6–67.5 | 61.2–85 | 90–125 |
| 氧气进口 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 |
| 氧气出口 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 | 50.5 卡箍 |
| 氢气出口 | 3/4"（英寸）× 2 | 3/4"（英寸）× 2 | 3/4"（英寸）× 2 | 3/4"（英寸）× 2 |
| 氧气侧耐压 | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa |
| 氢气侧耐压 | 0–3 MPa | 0–3 MPa | 0–3 MPa | 0–3 MPa |
| 水泵流量 | 38 L/min | 60 L/min | 75 L/min | 110 L/min |
| 工作温度 (°C) | 40–60 | 40–60 | 40–60 | 40–60 |
| 能耗 | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ |
| 水质要求 | 超纯水 ≥ 15 MΩ | |||
| 使用寿命 | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h |
| 产品尺寸 (mm) | 516 × 495 × 251.75 | 516 × 495 × 315.25 | 516 × 495 × 359.7 | 516 × 495 × 461.3 |
