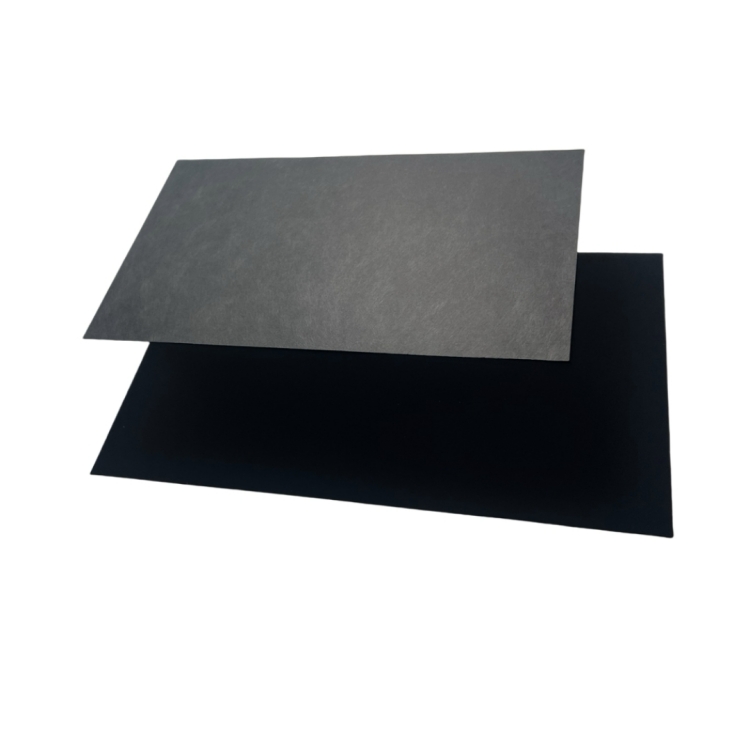

Key Features of Gas Diffusion Electrodes

Efficient Gas Transport

The porous structure of the GDE allows hydrogen, oxygen, or air to diffuse evenly to the reaction sites, ensuring uniform electrochemical reactions across the active area.

Excellent Electrical Conductivity

The conductive carbon-based substrate provides an efficient pathway for electron transport between the catalyst layer and the external circuit.

Optimized Water Management

The microporous layer and hydrophobic treatment help balance water retention and removal, preventing flooding or drying during operation.

Customizable Structure

GDE parameters such as substrate type (carbon paper or carbon cloth), MPL composition, PTFE content, thickness, and catalyst integration can be tailored for different applications and operating conditions.

How Does a Gas Diffusion Electrode Work?

Within a fuel cell or electrochemical system, the GDE operates through the following functions:

Gas Diffusion
Reactant gases enter through the porous GDL and are uniformly distributed toward the catalyst layer.

Electron Conduction
Electrons generated during the electrochemical reaction are collected and transported through the conductive GDE substrate to the external circuit.

Water Regulation
The MPL structure controls water transport, maintaining proper hydration of the membrane while avoiding excessive water accumulation.

Reaction Support
By maintaining stable gas, electron, and water pathways, the GDE supports efficient and continuous electrochemical reactions.

Applications of Gas Diffusion Electrodes

GDEs are widely used in various electrochemical systems, including:

Hydrogen Fuel Cells

Passenger vehicles, buses, trucks, and forklifts

UAVs and portable power systems

Backup and stationary power generation

Electrochemical Systems

PEM water electrolyzers

Direct electrochemical hydrogen peroxide (H₂O₂) generation

CO₂ reduction and other gas-involved electrochemical reactions

Research & Demonstration

Universities and research institutions

Stack testing and pilot-scale systems

Advanced catalyst and electrode development

How to Select a Gas Diffusion Electrode?

Selecting the appropriate GDE depends on the specific application requirements:

Application Type

Fuel cell, electrolyzer, or specialized electrochemical reaction system.

Substrate Selection

Carbon paper or carbon cloth, depending on mechanical strength, flexibility, and conductivity needs.

MPL & Hydrophobic Treatment

MPL carbon loading, pore structure, and PTFE content to balance gas diffusion and water management.

Catalyst Integration

With or without catalyst coating, catalyst type, and loading level if applicable.

Operating Conditions

Temperature, pressure, humidity, current density, and reactant gas composition.

Gas Diffusion Electrode Manufacturer

H2Gatch is a professional hydrogen energy manufacturer specializing in Gas Diffusion Electrodes (GDE), Membrane Electrode Assemblies (MEA), hydrogen fuel cell stacks, and related electrochemical components.

With advanced material processing and coating technologies, H2Gatch provides customized GDE solutions for fuel cells, electrolyzers, and emerging electrochemical applications.
If you are looking for reliable GDE products or tailored electrode solutions, feel free to contact us
