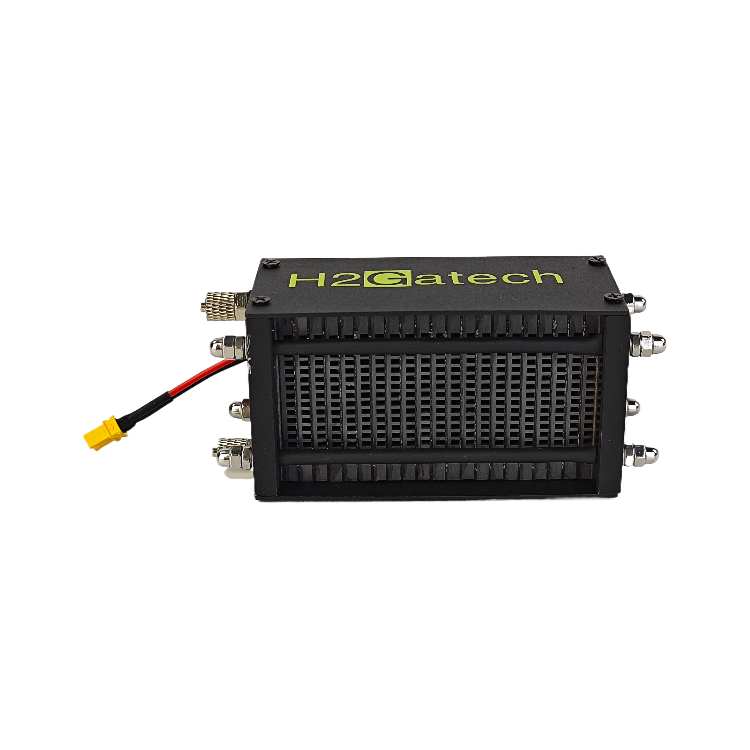

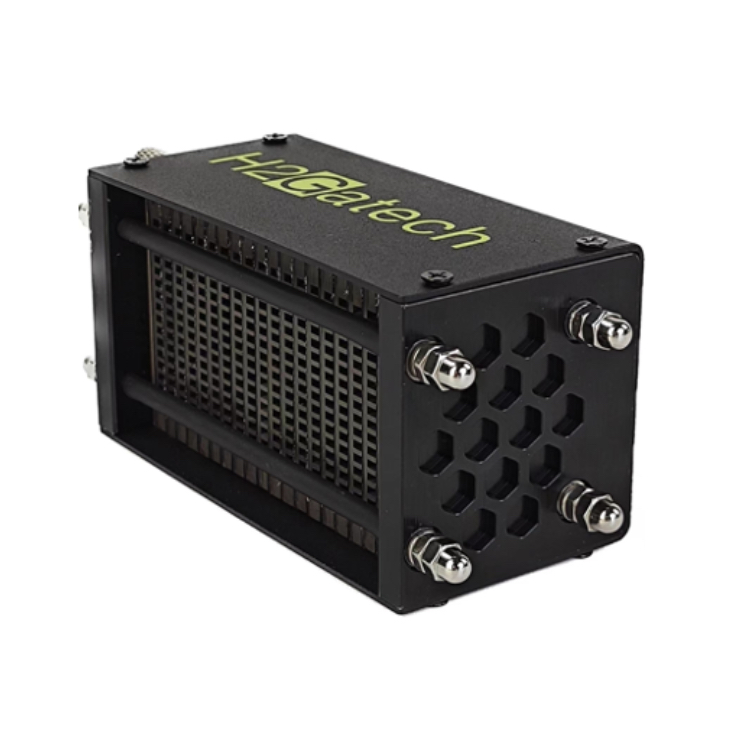

H2Gatech 20W Fuel Stack

H2Gatech20W Hydrogen Fuel Cell Stack is a compact 20W/12V PEM fuel cell power source designed for low-power, off-grid and backup energy applications.

The system delivers stable DC output with high efficiency (≥50%), low hydrogen consumption, and silent operation, making it ideal for remote sensors, IoT devices, environmental monitoring systems, small telecommunications equipment, and low-power security or surveillance electronics.

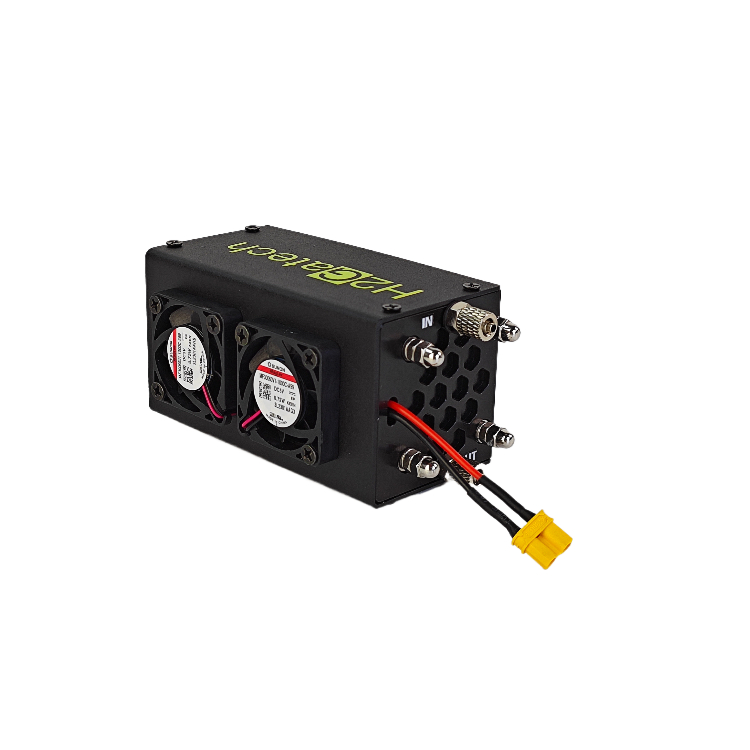

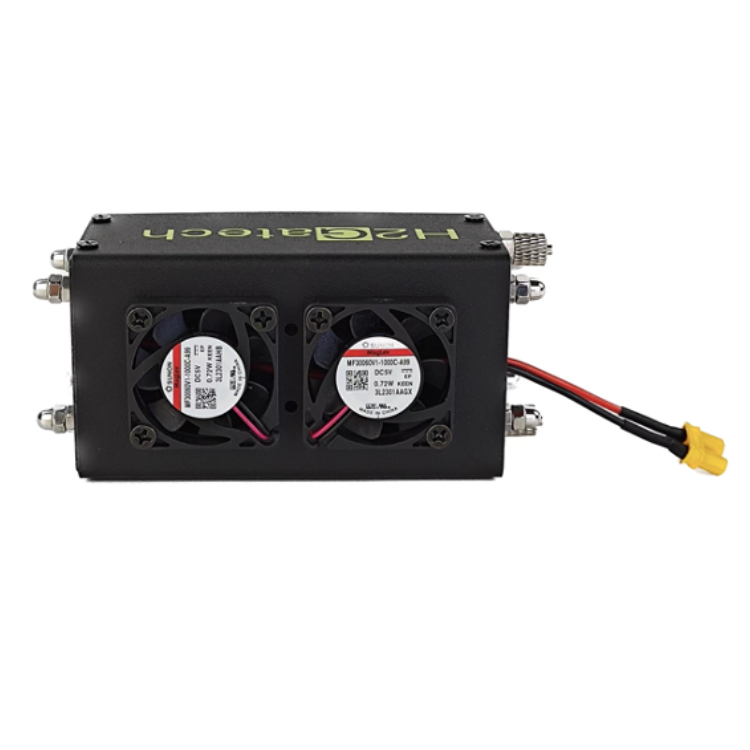

With its lightweight structure, integrated cooling fan, and external control box, the 20W provides reliable long-duration power in locations where battery replacement, grid access, or frequent maintenance is impractical.

Component List:
1 x 20W fuel cell stack
1 x controller (includes short circuit unit), and this module is also known as the electronic control box

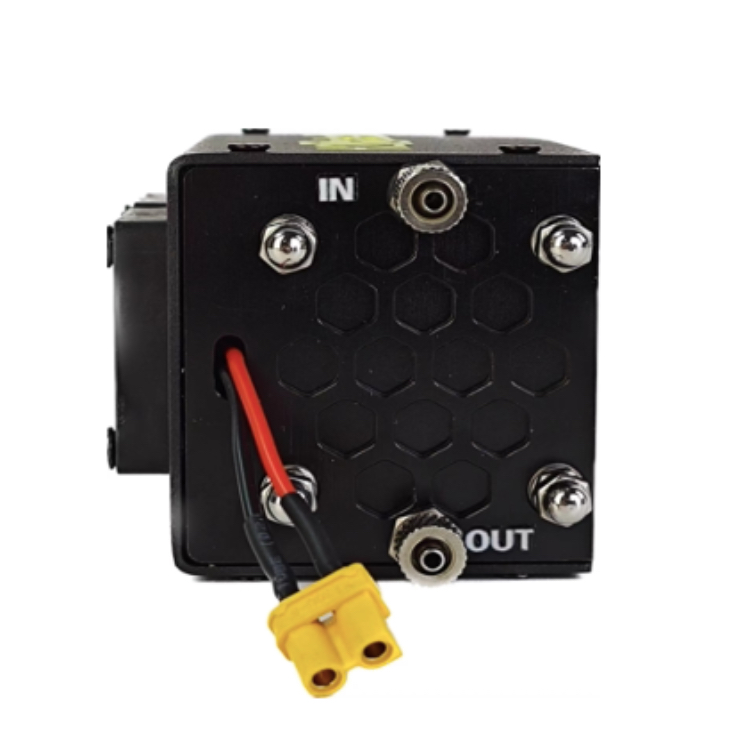

Connections and tubing
Electronic valves

获取报价 获取报价
H2Gatech 20W Fuel Stack

20W Air Cooled Hydrogen Fuel Cell PEM Fuel Cell

Fuel cells can be thought of as alternative energy devices that unlock the power of hydrogen. They convert chemical energy into electrical energy. Hydrogen fuel cells do this very cleanly, with no toxic emissions, and with a high efficiency. Hydrogen and fuel cell technologies have many potential clean energy applications – from running our vehicles, to powering our cellular phones and laptops, to heating our hospitals and homes.

获取报价 获取报价
H2Gatech 20W Fuel Stack

Number of Cells

This fuel cell stack is composed of 20 fuel cells.

H2Gatech 20W Fuel Stack

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.

H2Gatech 20W Fuel Stack

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from -5~35° C.

H2Gatech 20W Fuel Stack

Humidification

This fuel cell stack uses self-humidification.

H2Gatech 20W Fuel Stack

FC Stack Weight

The stack (including fan and casing) weighs 265g.

H2Gatech 20W Fuel Stack

Controller Weight

The weight of the controller is 122g.

H2Gatech 20W Fuel Stack

System Efficiency

At 6.52 volts the efficiency of the system is 40%.

H2Gatech 20W Fuel Stack

External power supply

It can be provided by H2Gatech or sourced by the customer.

Unlock Hydrogen Power Easily

Fuel cells can be thought of as alternative energy devices that unlock the power of hydrogen. They convert chemical energy into electrical energy. Hydrogen fuel cells do this very cleanly, with no toxic emissions, and with a high efficiency. Hydrogen and fuel cell technologies have many potential clean energy applications – from running our vehicles, to powering our cellular phones and laptops, to heating our hospitals and homes. Fuel cells do not generate energy out of thin air. They use hydrogen. Hydrogen is an outstanding carrier of energy. Hydrogen is non-toxic, renewable, easily obtained, and packed with energy. When it combusts with oxygen, it turns into water. This water can again be split into hydrogen and oxygen via electrolysis. The generated hydrogen can be combusted once again, thus undergoing a limitless cycle without toxic emissions.

获取报价 获取报价
H2Gatech 20W Fuel Stack
H2Gatech 20W Fuel Stack

Hydrogen - energy without combustion

With a fuel cell, you can convert hydrogen into electric current without combustion. Fossil fuels are converted into usable energy through combustion. The energy released during combustion is inherently difficult to capture and inefficient. It also produces carbon dioxide, which cannot easily be converted back into a usable fuel. A fossil fuel combustion engine at a power plant is only about 30 to 40% efficient. This means it coverts only 30 to 40% of the energy in the fossil fuels to usable energy (electricity). Engines in a car are even less efficient, and reach the level of 15 to 20% of efficiency. Where does the rest of the energy go? It escapes as heat, vibration, and noise. On the other hand, fuel cells can operate at 40 to 65% efficiency. This means that they can convert 40 to 65% of the energy contained in hydrogen into electricity.

获取报价 获取报价

H2Gatech 20W Fuel Stack Components List:
20W fuel cell stack
20W controller

H2Gatech 20W Fuel Stack Performance
The following polarization curve is an examplary performance for this stack.The H2Gatech 20W Fuel Cell Stack uses PEM (Proton Exchange Membrane) fuel cell technology to converthydrogen and oxygen directly into electricity through an electrochemical reaction, without combustion.

20W
Applications of H2Gatech 20W Fuel Stack
H2Gatech 20W Hydrogen Fuel Cell Stack is a compact 20W PEM fuel cell power source designed for 20W hydrogen fuel cell systems, portable hydrogen fuel cell applications, and hydrogen fuel cell education and demonstration kits. It provides higher power output while maintaining a lightweight and easy-to-integrate design.

Fuel Stack Manufacturer
H2Gatch is a professional fuel stack manufacturer that provides high-quality and safe fuel stacks for different needs. If you are looking for a fuel stack for your project, feel free to contact us.


CategoryParameterSpecification
Output PerformancePower20 W
Operating Voltage10–18 V
Operating Current0–2.7 A
Efficiency> 40%
FuelHydrogen Consumption0.42 L/min (at 2.7 A)
Hydrogen Purity&ge; 99.99% (CO < 1 ppm)
Hydrogen Pressure0.35–0.5 bar
Fuel TypeHydrogen
Working EnvironmentAmbient Temperature0–35 °C
Ambient Humidity10%–90%
Storage Temperature0–60 °C
Physical ParametersNumber of Cells20

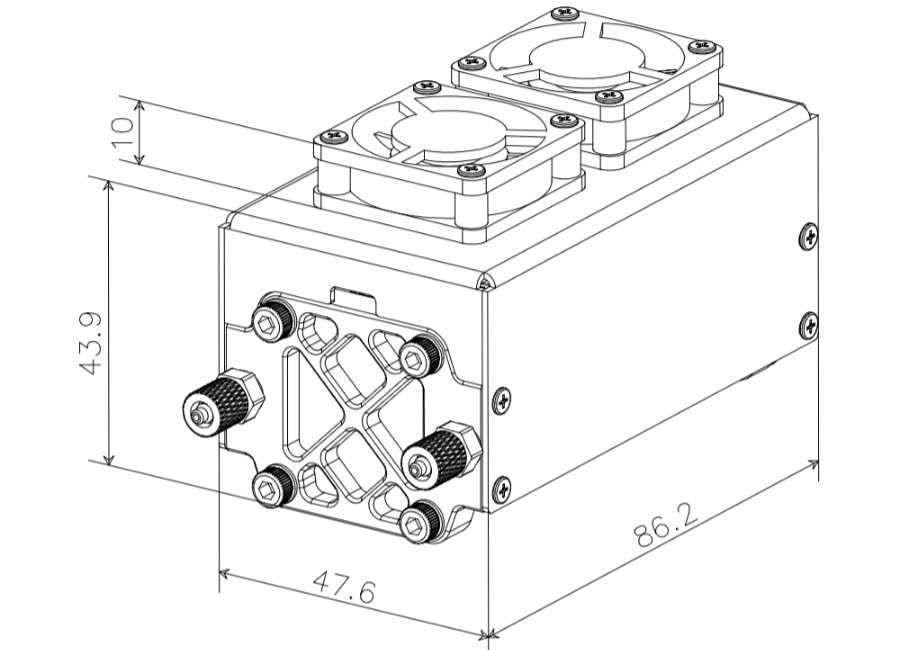

Stack Dimensions51.5 × 47 × 87 mm
Weight387 g
