氢燃料电池堆

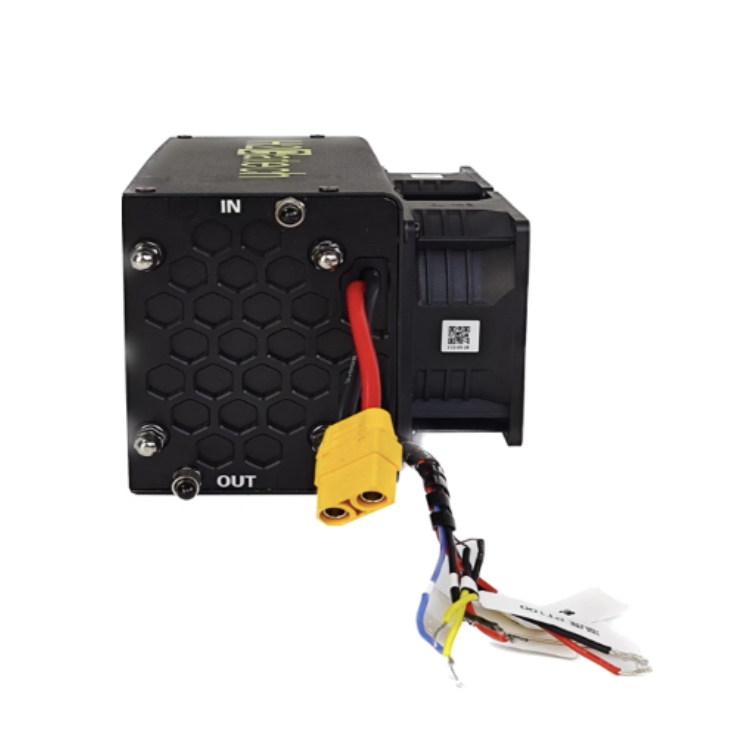

H2Gatech 100W Fuel Stack

The H2Gatech 100W Hydrogen Fuel Cell Stack is a high-output PEM fuel cell power system engineered for practical energy supply, backup power, and small off-grid installations. Compared with lower-power models, it is capable of driving real electrical loads for extended periods.

The system delivers robust and dependable DC power, making it suitable for telecommunications equipment, remote monitoring stations, security systems, and emergency power scenarios. Its silent operation and emission-free design allow deployment in both indoor and sensitive environments.

Featuring a reinforced structure, integrated cooling architecture, and a dedicated control unit, the 100W fuel cell is optimized for long-duration service in locations where grid electricity or frequent battery replacement is not feasible.

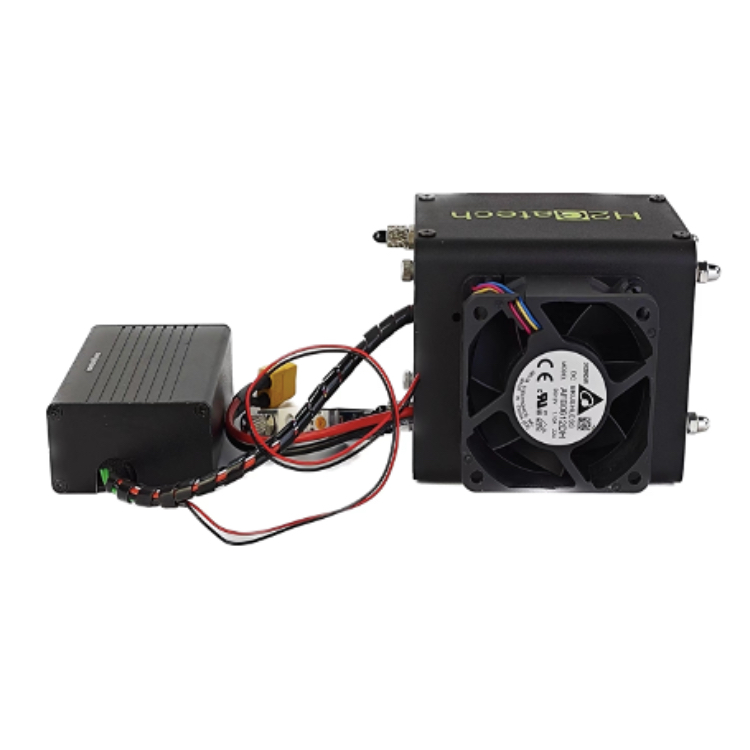

Component List:
Fuel cell stack (including fan)
Fuel cell controller
TPU or PTFE tubing
Intake solenoid valve
Pressure sensor
Current sensor

获取报价 获取报价
H2Gatech 100W Fuel Stack

100W Air Cooled Hydrogen Fuel Cell PEM Fuel Cell

Fuel cells represent an advanced form of clean energy technology that harnesses hydrogen to produce electricity. By directly converting chemical energy into electrical power, fuel cells operate with high efficiency and zero harmful emissions.

获取报价 获取报价
H2Gatech 100W Fuel Stack

Number of Cells

This fuel cell stack is composed of 20 fuel cells.

H2Gatech 100W Fuel Stack

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.

H2Gatech 100W Fuel Stack

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from -5~35° C.

H2Gatech 100W Fuel Stack

Humidification

This fuel cell stack uses self-humidification.

H2Gatech 100W Fuel Stack

FC Stack Weight

The stack (including fan and casing) weighs 630g.

H2Gatech 100W Fuel Stack

Controller Weight

The weight of the controller is 180g.

H2Gatech 100W Fuel Stack

System Efficiency

At 12 volts the efficiency of the system is over 40%.

H2Gatech 100W Fuel Stack

External power supply

It can be provided by H2Gatech or sourced by the customer.

Unlock the Power of Hydrogen

Fuel cells enable clean and efficient electricity generation by converting hydrogen’s chemical energy directly into electrical power—without combustion. This process delivers high efficiency, silent operation, and zero harmful emissions, producing only water as a byproduct. Hydrogen is a versatile and sustainable energy carrier. It is abundant, non-toxic, and renewable, making it suitable for a wide range of applications—from portable devices and backup power systems to transportation and building energy solutions. By harnessing hydrogen, fuel cell technology opens a reliable path toward a low-carbon energy future.

获取报价 获取报价
H2Gatech 100W Fuel Stack
H2Gatech 100W Fuel Stack

Hydrogen - energy without combustion

With a fuel cell, you can convert hydrogen into electric current without combustion. Fossil fuels are converted into usable energy through combustion. The energy released during combustion is inherently difficult to capture and inefficient. It also produces carbon dioxide, which cannot easily be converted back into a usable fuel. A fossil fuel combustion engine at a power plant is only about 30 to 40% efficient. This means it coverts only 30 to 40% of the energy in the fossil fuels to usable energy (electricity). Engines in a car are even less efficient, and reach the level of 15 to 20% of efficiency. Where does the rest of the energy go? It escapes as heat, vibration, and noise. On the other hand, fuel cells can operate at 40 to 65% efficiency. This means that they can convert 40 to 65% of the energy contained in hydrogen into electricity.

获取报价 获取报价

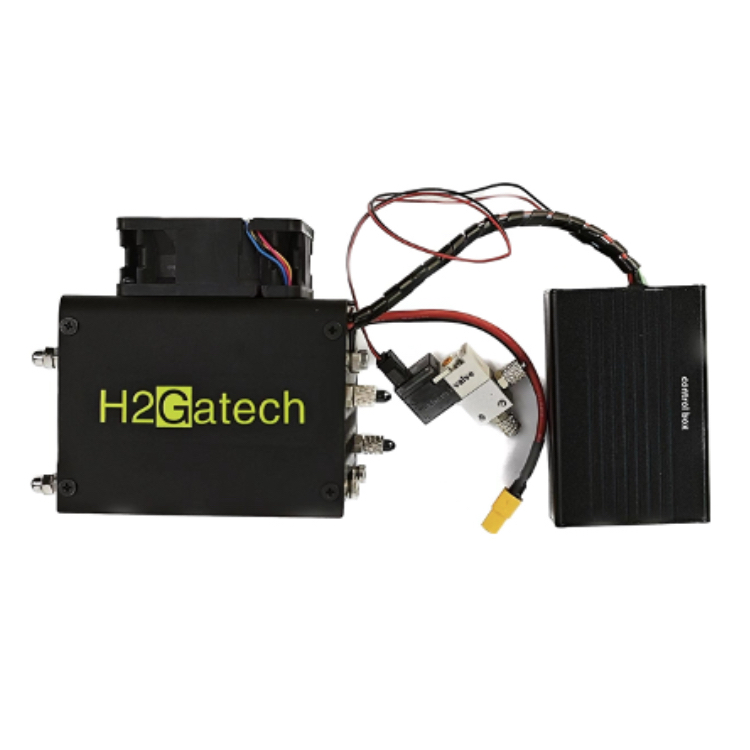

H2Gatech 100W Fuel Stack Components List:
100W Fuel cell stack (including fan)
100W Fuel cell controller
TPU or PTFE tubing
Intake solenoid valve
Pressure sensor
Current sensor

H2Gatech 100W Fuel Stack Performance

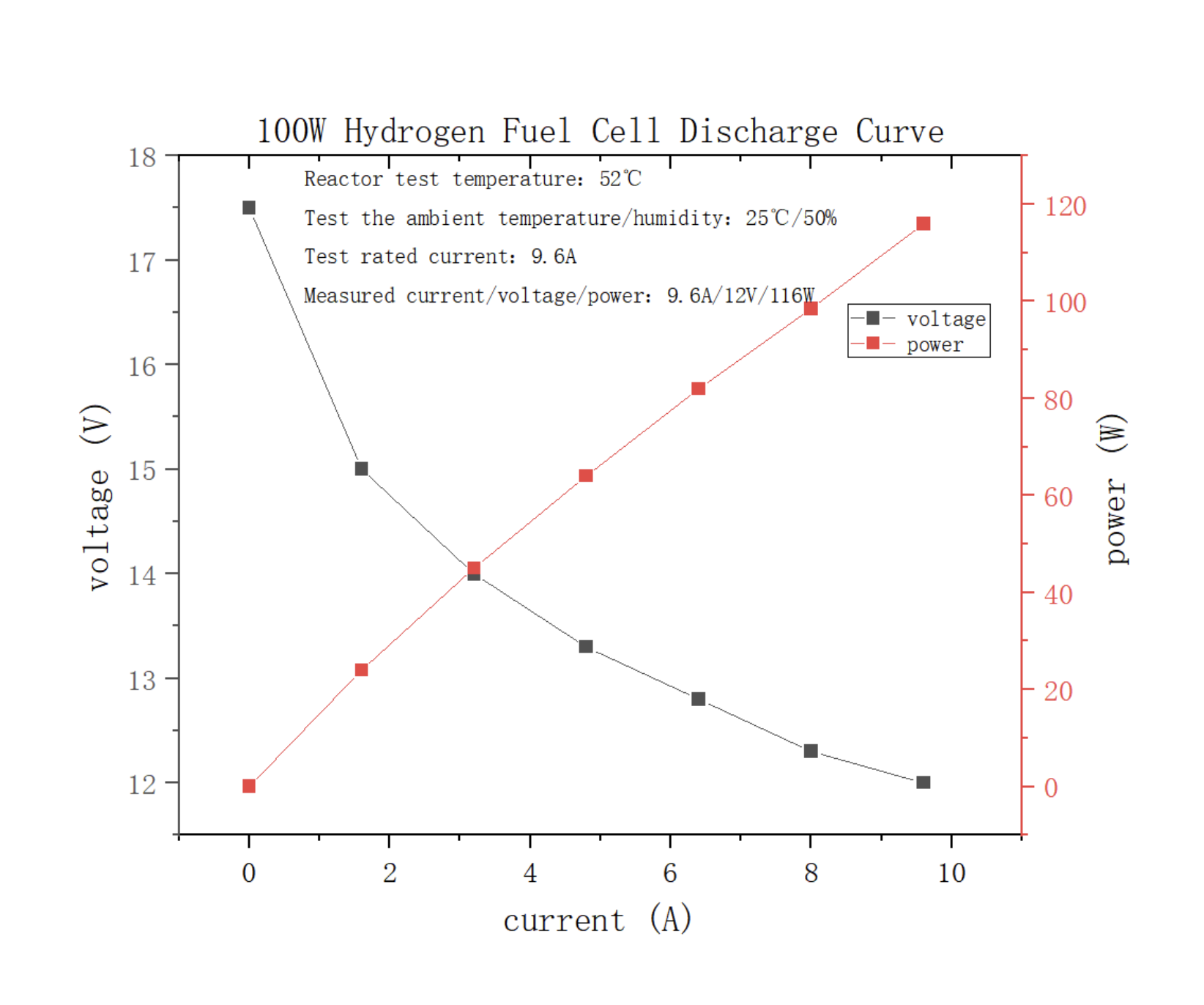

The following polarization curve is an examplary performance for this stack.The H2Gatech 100W Fuel Cell Stack uses

PEM (Proton Exchange Membrane) fuel cell technology to converthydrogen and oxygen directly into electricity through an electrochemical reaction, without combustion.

100W

Applications of H2Gatech100W Fuel Cell Stack
Hydrogen Technology Demonstration (Practical Load)Unlike low-power educational models, the 100W system can drive real electrical loads, making it suitable for advanceddemonstrations, pilot projects, and applied hydrogen energy showcases.

Fuel Stack Manufacturer
H2Gatech specializes in the development and manufacturing of reliable hydrogen fuel cell stacks, delivering safe and high-performance solutions for a wide range of applications. If you are planning a hydrogen-related project, we welcome you toget in touch with our team.


CategoryParameterSpecification
Output PerformancePower100 W
Operating Voltage10–18 V
Operating Current0–9.6 A
Efficiency> 40%
FuelHydrogen Consumption1.5 L/min (at 9.6 A)
Hydrogen Purity&ge; 99.99% (CO < 1 ppm)
Hydrogen Pressure0.035–0.05 MPa
Fuel TypeHydrogen
Working EnvironmentAmbient Temperature0–35 °C
Ambient Humidity10%–90%
Storage Temperature0–60 °C
Physical ParametersNumber of Cells20

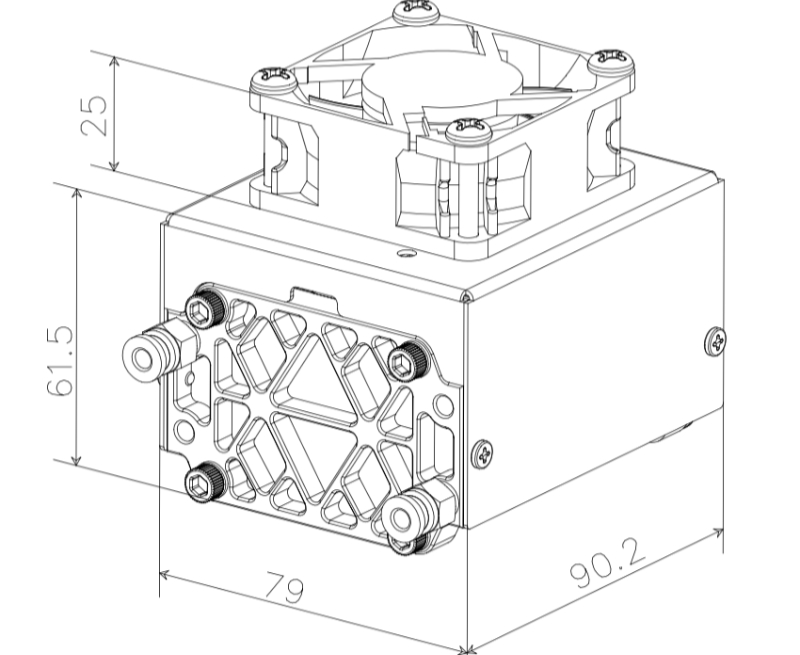

Stack Dimensions94 × 78 × 91 mm
Weight810 g
