氢燃料电池堆

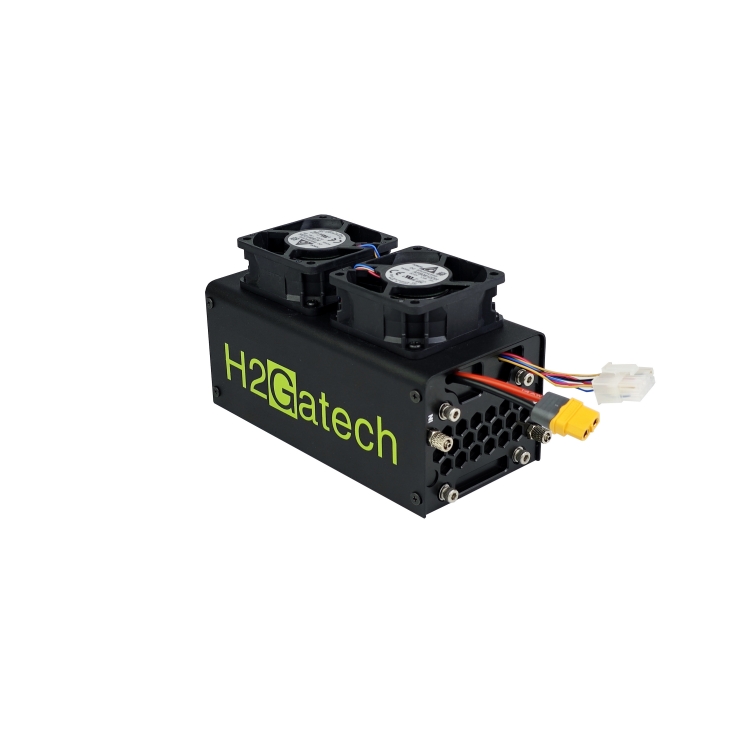

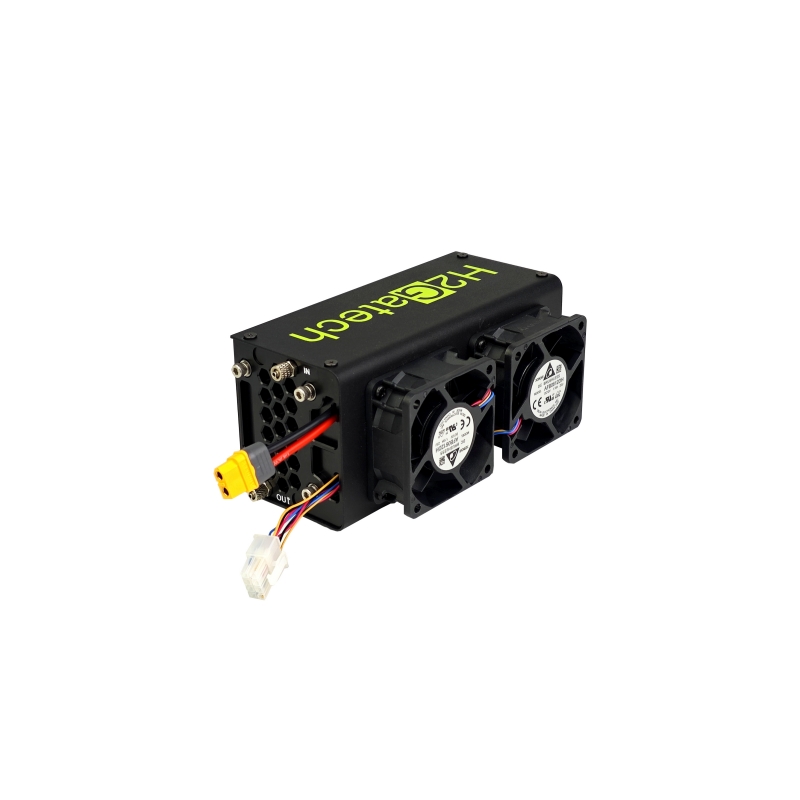

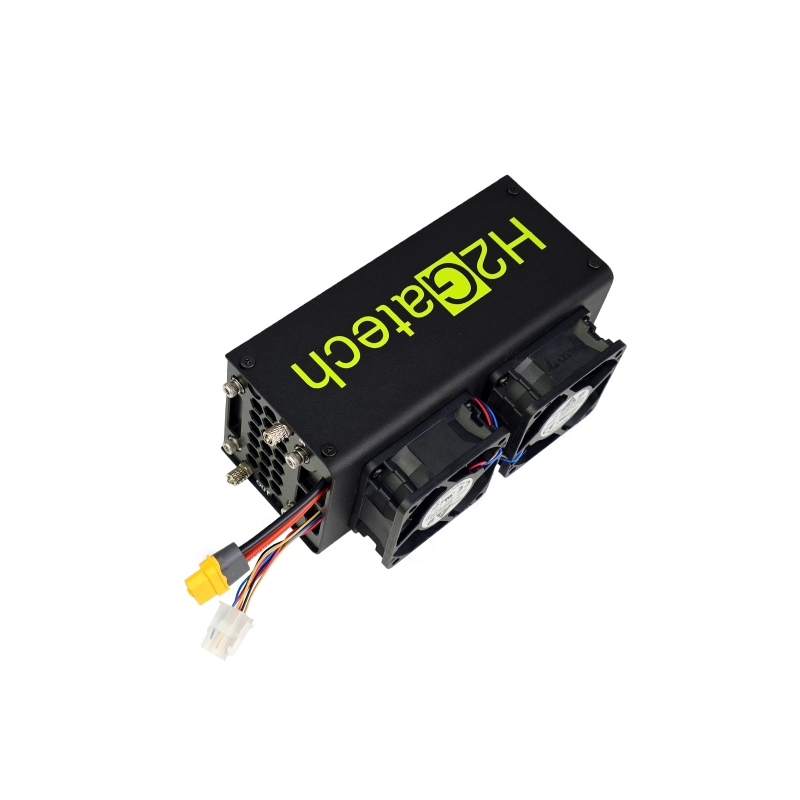

H2Gatech 1000W 燃料电池堆

H2Gatech 1000W 氢燃料电池堆是一款高功率PEM燃料电池能源系统,专为需要强劲、持续电力输出的电动出行、移动电源平台及离网能源解决方案而设计。

该1000W燃料电池可提供稳定高效的直流电力,适用于氢动力三轮物流车、高尔夫球车,以及无人机和野外设备的移动供电系统。其运行清洁、低噪音,在对静音、零排放及长续航有严格要求的应用场景中尤为理想。

凭借强化的系统结构、先进的主动冷却技术及专用电子控制单元,该1000W燃料电池能够在电池容量有限、电网接入受限或频繁充电不便的情况下,实现长时间运行与快速加氢。

组件清单:

燃料电池堆(含风扇)

燃料电池控制器

TPU或PTFE管路

进气电磁阀

压力传感器

电流传感器


获取报价 获取报价
H2Gatech 1000W 燃料电池堆

**1000W 风冷氢燃料电池 PEM 燃料电池**

Fuel cells represent an advanced approach to clean power generation, utilizing hydrogen to produce electricity. By converting chemical energy into electrical output through an electrochemical reaction, fuel cells provide high-efficiency performance while operating with zero harmful emissions.

获取报价 获取报价
H2Gatech 1000W 燃料电池堆

细胞数量

This fuel cell stack is composed of 60 fuel cells.

H2Gatech 1000W 燃料电池堆

氢气压力

Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.

H2Gatech 1000W 燃料电池堆

环境温度

The fuel cell stack operates best in a temperature ranging from -5~35° C.

H2Gatech 1000W 燃料电池堆

加湿

This fuel cell stack uses self-humidification.

H2Gatech 1000W 燃料电池堆

FC 堆叠重量

The stack (including fan and casing) weighs 4715g.

H2Gatech 1000W 燃料电池堆

控制器重量

The weight of the controller is 640g.

H2Gatech 1000W 燃料电池堆

系统效率

At 12 volts the efficiency of the system is over 40%.

H2Gatech 1000W 燃料电池堆

External power supply

It can be provided by H2Gatech or sourced by the customer.

清洁动力,氢启未来

Fuel cells generate electrical power by directly converting hydrogen’s chemical energy into electricity through an electrochemical process, eliminating the need for combustion. This method delivers high efficiency, low-noise operation, and emission-free performance, producing only water during operation. Hydrogen is a clean and versatile energy carrier. It is abundant, non-toxic, and renewable, making it suitable for a wide range of uses—from portable and backup power systems to transportation and distributed energy solutions for buildings. By adopting hydrogen fuel cell technology, reliable and low-carbon energy becomes a practical and sustainable option.

获取报价 获取报价
H2Gatech 1000W 燃料电池堆
H2Gatech 1000W 燃料电池堆

氢驱清洁能源

Fuel cells produce electricity through an electrochemical process that uses hydrogen as fuel, without involving combustion. Traditional power generation methods depend on burning fossil fuels, which inherently causes energy waste and efficiency limitations. In combustion-driven systems, a significant portion of energy is dissipated as heat, noise, and mechanical loss, while carbon emissions cannot be easily reused. Fuel cell technology operates differently by converting hydrogen’s chemical energy directly into electrical power. This enables more efficient energy conversion, clean and emission-free operation, and quiet performance, positioning fuel cells as a cleaner and more sustainable alternative to conventional combustion-based energy technologies.

获取报价 获取报价

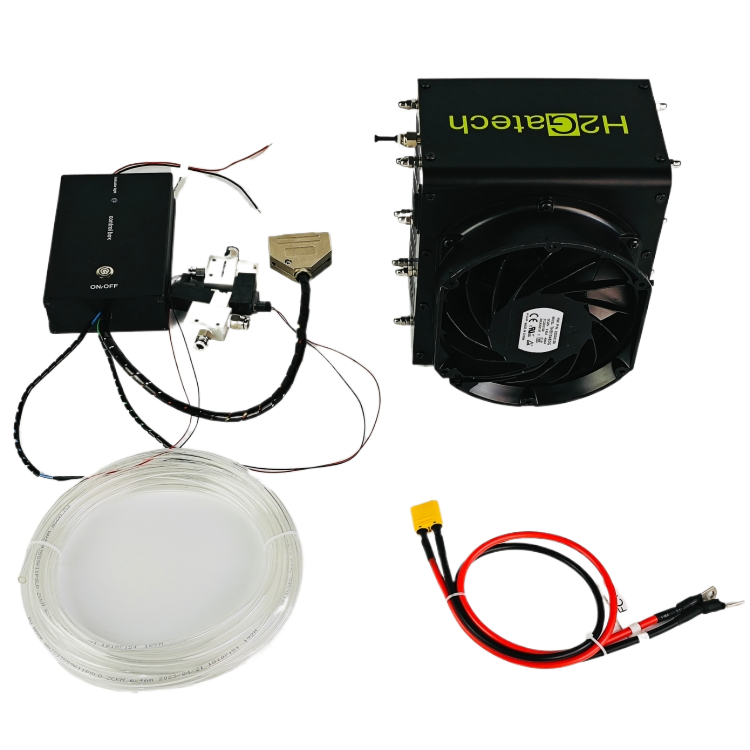

极永新能源 1000W 燃料电池堆组件清单:

1000W 燃料电池堆(含风扇)

1000W 燃料电池控制器

TPU 或 PTFE 管路

进气电磁阀

压力传感器

电流传感器

极永新能源 1000W 燃料电池堆性能

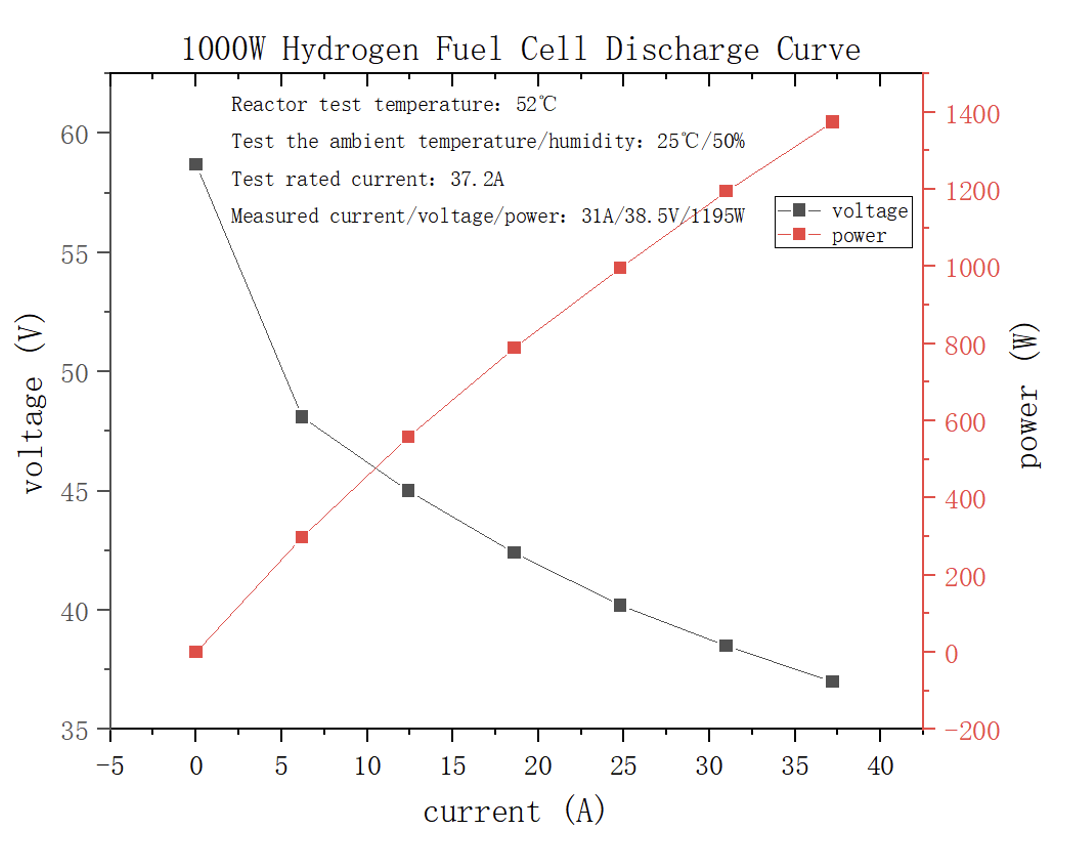

以下极化曲线展示了该电堆的典型性能。极永新能源1000W燃料电池堆采用PEM(质子交换膜)燃料电池技术,通过电化学反应将氢气和氧气直接转化为电能,无需燃烧。

1000W

极永新能源 1000W 燃料电池堆应用领域

氢动力三轮物流车
高尔夫球车及轻型多功能车
无人机移动供电系统
便携式氢燃料电池电站
离网及移动能源系统

燃料电池堆制造商

极永新能源是您获取高品质燃料电池堆的专业来源。我们为教育、商业及工业需求提供安全、高效、多场景适用的氢能解决方案。准备为您的项目赋能?即刻联系极永新能源,获取全球最值得信赖的氢燃料电池技术。

输出性能
功率1000 W
工作电压24 V – 56 V
工作电流0 A – 37.2 A
效率> 40%
燃料
氢气消耗量17 L/min (37.2 A 时)
氢气纯度≥ 99.99% (CO < 1 ppm)
氢气压力0.035 MPa – 0.05 MPa
工作环境
环境温度0 – 35 ℃
环境湿度10% – 90%
存储环境0 – 60 ℃
物理参数
单电池片数60
电堆尺寸145 × 162 × 261 mm
重量4715 g
