氢燃料电池堆

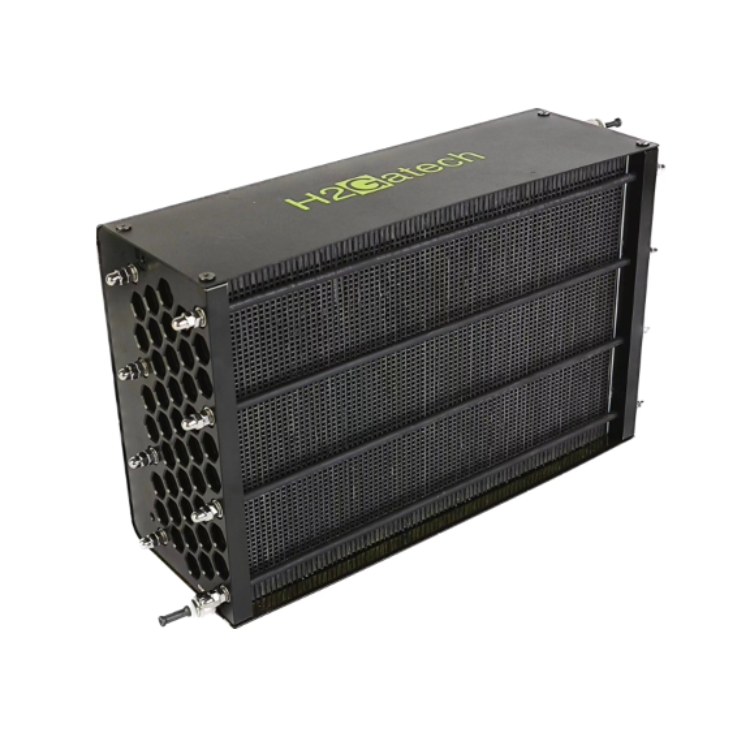

极永新能源 5000W 燃料电池堆

极永新能源 5000W 氢燃料电池系统是一款 5kW 级 PEM 燃料电池动力平台,专为车载应用及高可靠性备用电源场景而设计。该平台能够在传统电池系统无法满足的严苛运行条件下,提供持续稳定的电力输出。

该 5kW 系统非常适合氢动力观光车及旅游车辆,为公园、度假村及景区提供清洁、安静的驱动支持——这些场所对低噪音和零排放有严格要求。它同样是应急及备用电源的有效解决方案,可在停电或离网情况下确保关键设备的持续供电。

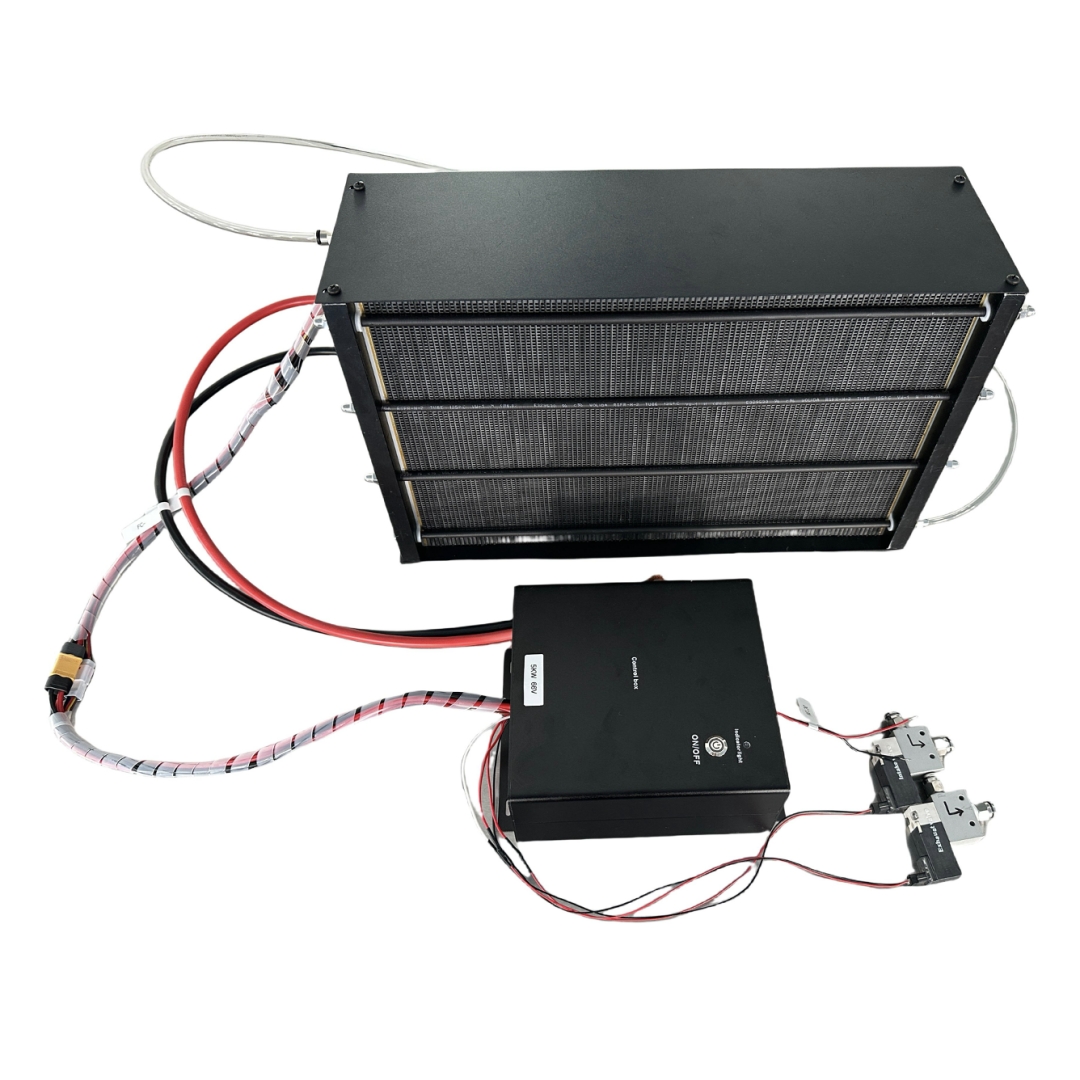

组件清单:

1. 燃料电池堆(含风扇)

2. 燃料电池控制器

3. TPU 或 PTFE 管路

4. 进气电磁阀

5. 压力传感器

6. 电流传感器

获取报价 获取报价
极永新能源 5000W 燃料电池堆

5000W 空冷式氢燃料电池 PEM 燃料电池

H2Gatch fuel cells provide a high-efficiency alternative to combustion. By directly converting hydrogen into electricity through an electrochemical process, our systems deliver silent, zero-emission power. Experience superior energy density and reliable performance for all your clean energy needs.

获取报价 获取报价
极永新能源 5000W 燃料电池堆

单电池片数

This fuel cell stack is composed of 110 fuel cells.

极永新能源 5000W 燃料电池堆

氢气压力

Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.

极永新能源 5000W 燃料电池堆

环境温度

The fuel cell stack operates best in a temperature ranging from -5~35° C.

极永新能源 5000W 燃料电池堆

增湿 / 加湿

This fuel cell stack uses self-humidification.

极永新能源 5000W 燃料电池堆

燃料电池堆重量

The stack (including fan and casing) weighs g.

极永新能源 5000W 燃料电池堆

控制器重量

The weight of the controller is g.

极永新能源 5000W 燃料电池堆

系统效率

At 12 volts the efficiency of the system is over 40%.

极永新能源 5000W 燃料电池堆

外部电源

It can be provided by H2Gatech or sourced by the customer.

氢能零排放能源

Experience the efficiency of combustion-free power. Hydrogen fuel cells directly convert chemical energy into high-quality DC electricity, offering a silent and eco-friendly alternative to conventional generators. Whether deployed as a portable power bank for field research or a robust backup system for telecommunications, hydrogen provides a versatile, renewable energy source that never compromises on performance. H2Gatech delivers this clean power in a compact, maintenance-free package, making sustainable energy accessible in any environment.

获取报价 获取报价
极永新能源 5000W 燃料电池堆
极永新能源 5000W 燃料电池堆

氢能助力可持续未来

Modern energy demands require more than what traditional, noisy, and high-maintenance combustion systems can offer. H2Gatech fuel cell stacks provide a maintenance-free energy source that operates with near-silent performance and high energy density. From portable power supplies to backup systems for telecommunications, our electrochemical technology ensures that energy is produced exactly where it’s needed, without the waste associated with fossil fuels. Embrace the future of distributed energy with a technology that is as versatile as it is clean.

获取报价 获取报价

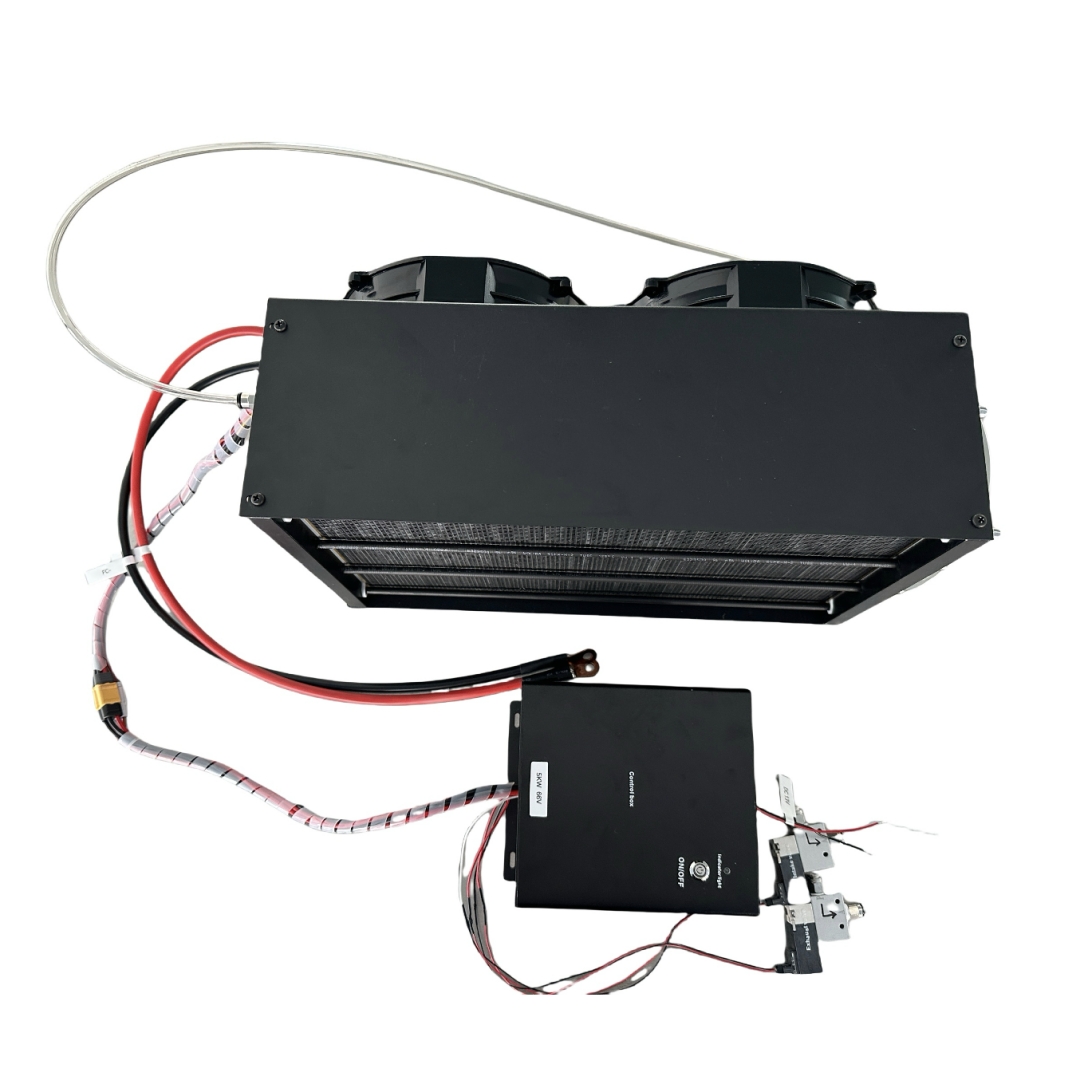

极永新能源 5000W 燃料电池堆组件清单:

5000W 燃料电池堆(含风扇)

5000W 燃料电池控制器

TPU 或 PTFE 管路

进气电磁阀

压力传感器

电流传感器

极永新能源 5000W 燃料电池堆性能

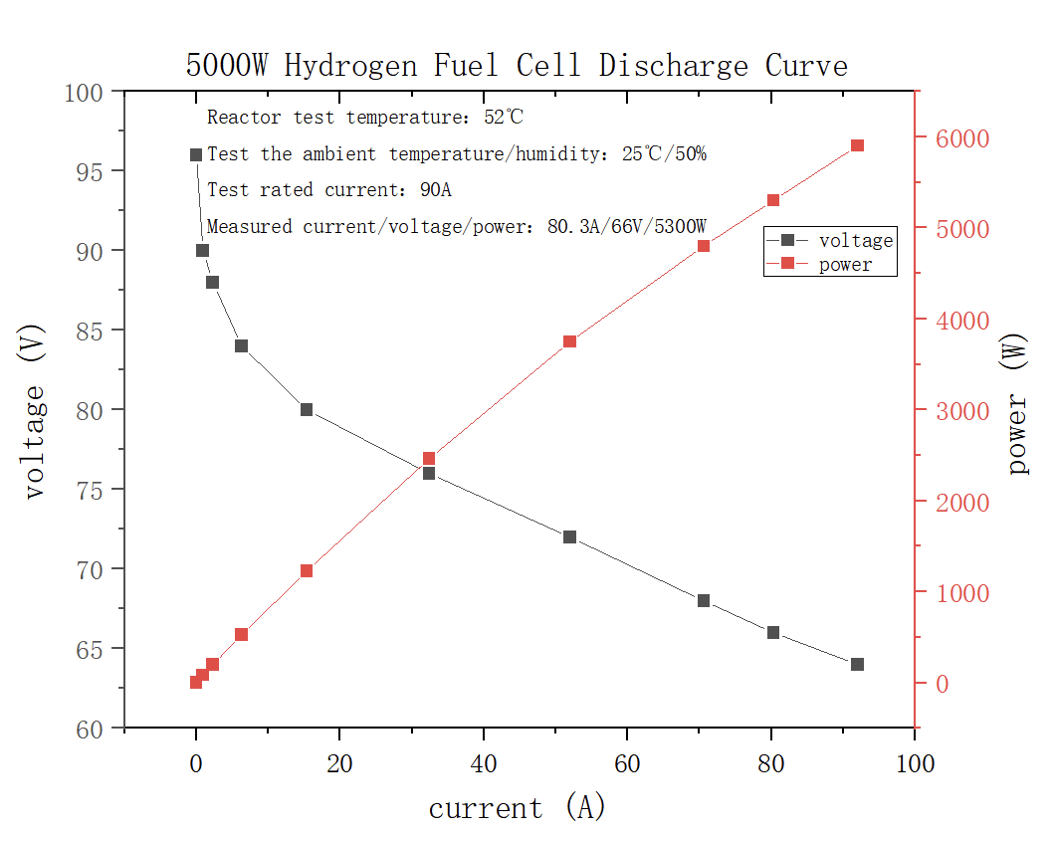

以下极化曲线展示了该电堆的典型性能。极永新能源5000W燃料电池堆采用PEM(质子交换膜)燃料电池技术,通过电化学反应将氢气和氧气直接转化为电能,无需燃烧。

5000W

极永新能源 5000W 燃料电池堆应用领域

氢动力观光车及旅游车辆
应急及备用电源系统
氢燃料电池无人机地面支援电源
四轮电动多功能车
叉车及轻型工业车辆
移动及离网供电系统

燃料电池堆制造商
以极永新能源的下一代燃料电池技术,在能源转型中保持领先。我们制造高品质氢燃料电池堆,为零排放未来提供清洁动力。我们的电堆专为高效率与最小环境影响而设计,使极永新能源成为环保意识开发者的优选。加入氢能革命,选择我们的创新燃料电池解决方案。



输出性能
功率5000 W
工作电压55 V – 99 V
工作电流0 A – 90 A
效率> 40%
燃料
氢气消耗量77 L/min (90 A 时)
氢气纯度≥ 99.99% (CO < 1 ppm)
氢气压力0.035 MPa – 0.05 MPa
工作环境
环境温度0 – 35 ℃
环境湿度10% – 90%
存储环境0 – 60 ℃
物理参数
单电池片数110

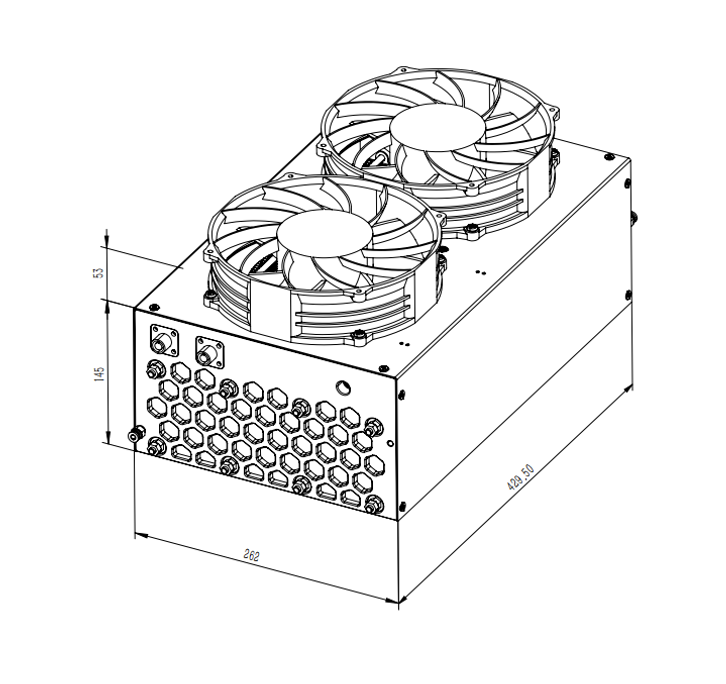

电堆尺寸198 × 262 × 429.5 mm
重量14,000 g
