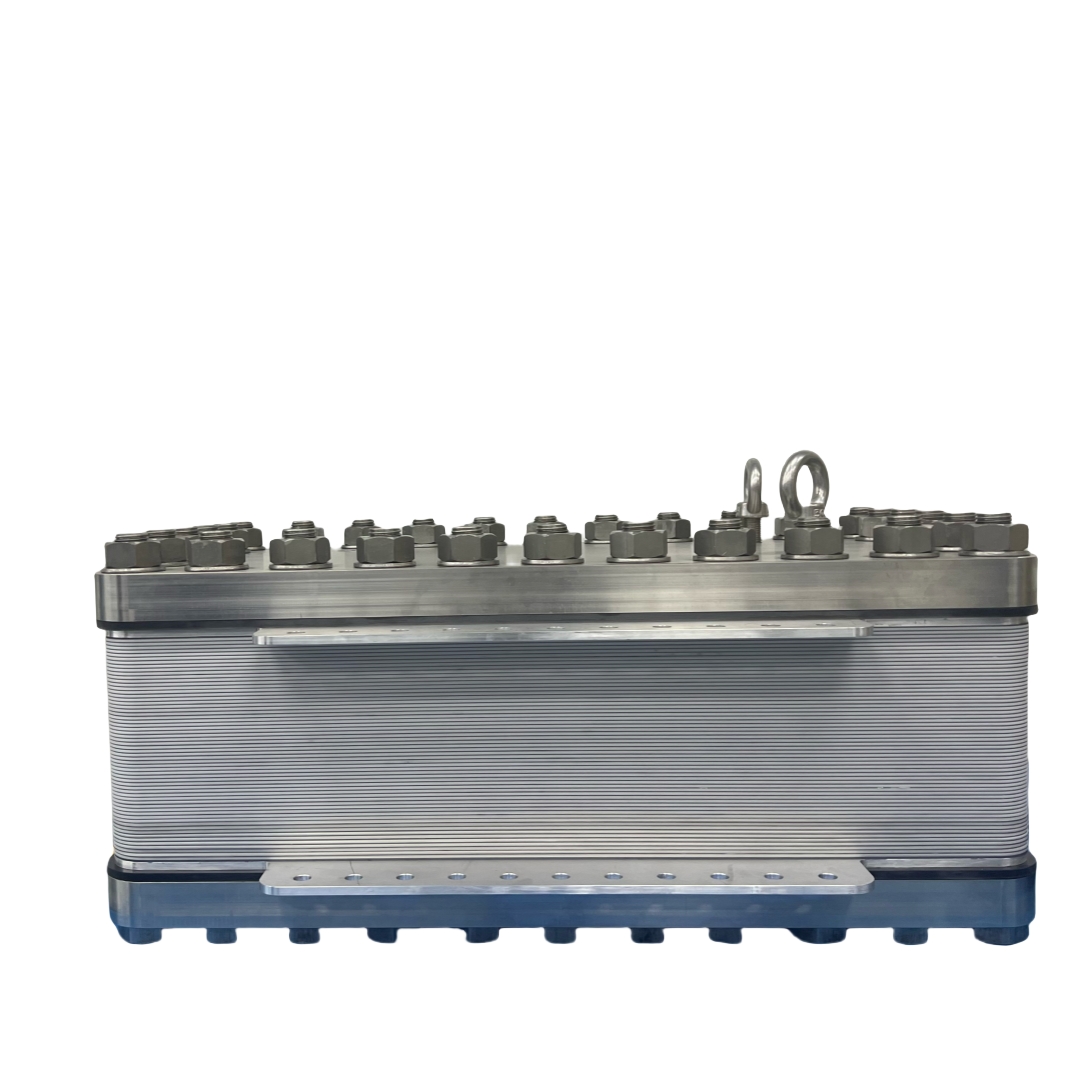

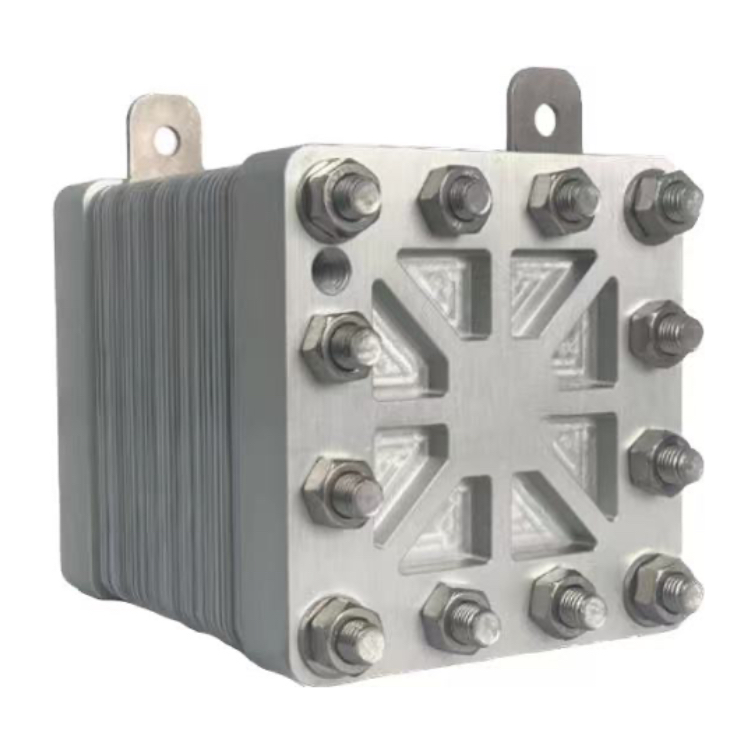

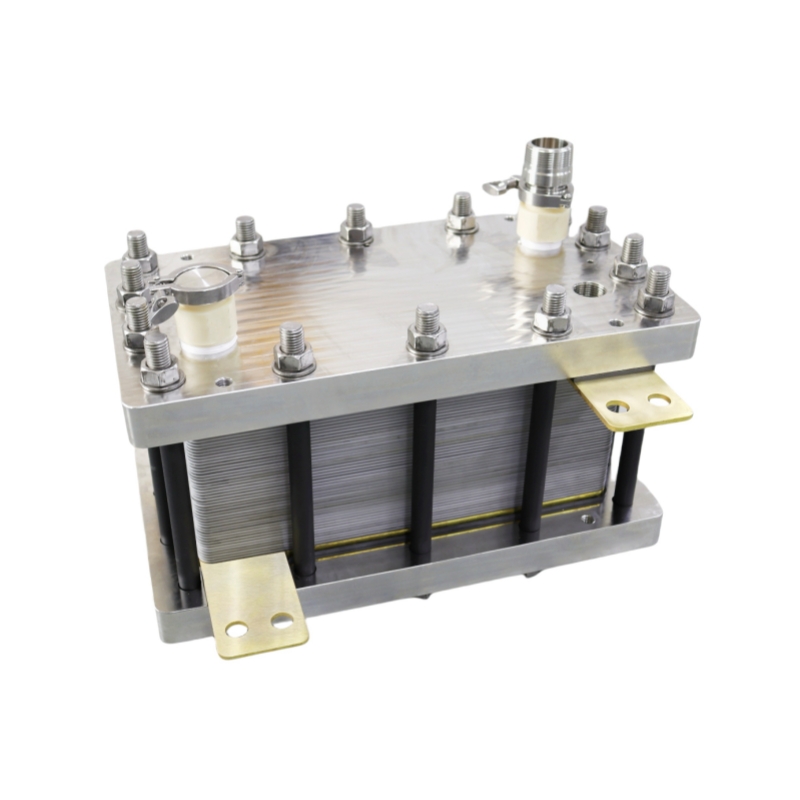

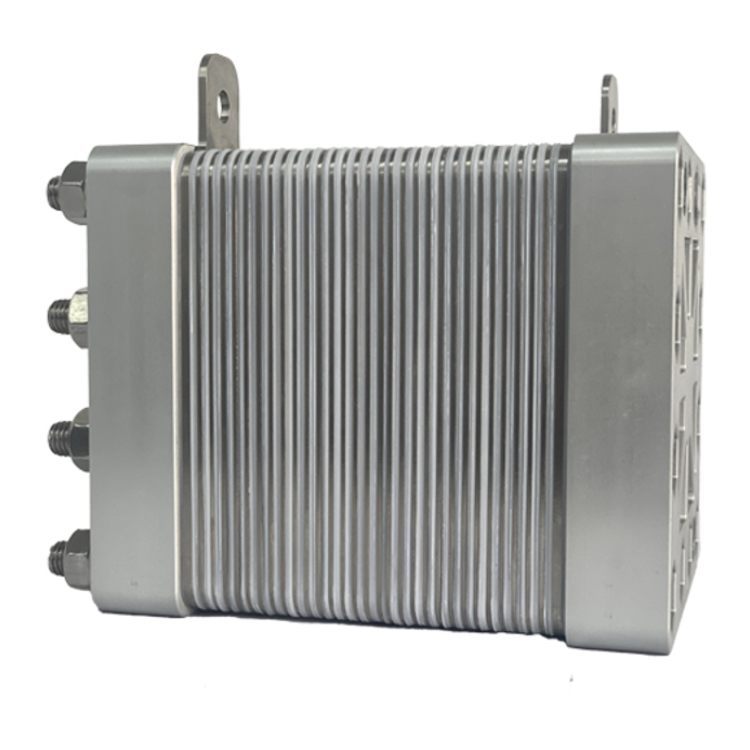

PEM 水电解槽(20–250 Nm³/h)制氢
极永新能源工业级电解槽的设计旨在实现高效率、长使用寿命及稳定连续运行。该系统架构注重耐用性、一致性与低生命周期成本,使其适用于大规模制氢及基础设施项目。
通过支持与可再生能源及工业能源系统的集成,该系列产品能够在满足工业用户对可靠性与性能要求的同时,实现可扩展的绿色制氢。
工业规模PEM水电解系统
H2Gatech PEM water electrolysis systems enable high-efficiency, zero-emission hydrogen production through advanced electrochemical technology. By splitting water into hydrogen and oxygen using renewable electricity, our systems deliver high-purity hydrogen with fast dynamic response and stable performance. With capacities ranging from small-scale units to industrial systems up to 250 Nm³/h, H2Gatech offers reliable, scalable, and clean hydrogen generation solutions for the next generation of energy applications.
细胞数量
The electrolyzer stack is composed of multiple electrochemical cells, configured according to the required hydrogen production capacity.
氢气压力
Hydrogen is produced at low to medium pressure, suitable for laboratory use and distributed hydrogen applications.
环境温度
Designed to operate reliably under typical indoor and outdoor ambient conditions.
加湿
The system adopts a self-humidifying design, simplifying system integration and operation.
电解槽堆称重
Compact and lightweight stack design, suitable for laboratory and distributed installations.
电源接口
Designed for connection with an external DC power source or rectifier system.
系统效率
High electrolysis efficiency optimized for small-scale hydrogen production and testing applications.
外接电源
External power supply can be provided by H2Gatech or sourced by the customer.
可扩展氢气产量,最高可达 250 Nm³/h
Experience the performance and reliability of industrial-scale PEM water electrolysis for large-volume green hydrogen production. H2Gatech PEM water electrolyzer systems efficiently convert electrical energy into high-purity hydrogen through advanced electrochemical water splitting, delivering zero-emission operation and high energy efficiency. Engineered for integration with renewable power sources and industrial energy infrastructure, our systems provide fast dynamic response, stable long-term operation, and scalable hydrogen output up to 250 Nm³/h. With a robust, modular, and low-maintenance design, H2Gatech enables dependable hydrogen generation for industrial, energy storage, and infrastructure-scale applications.
利用PEM水电解为氢能经济提供动力
As global energy infrastructure shifts toward decarbonization, hydrogen production must be clean, efficient, and scalable. H2Gatech PEM water electrolysis systems enable green hydrogen generation by converting electrical power into high-purity hydrogen through advanced electrochemical processes. Optimized for renewable energy integration and on-site hydrogen production, our systems deliver fast dynamic response, stable long-term operation, and flexible capacity expansion. With a robust, low-maintenance design, H2Gatech provides reliable PEM electrolyzer solutions to support the transition toward a sustainable hydrogen economy.
应用
该系列电解槽系统主要用于技术示范、研发和分布式氢气生产。典型应用包括实验室氢气供应、燃料电池测试、试点项目以及小型或内部使用的现场氢气生产。这些系统被大学、研究机构、燃料电池开发商和早期氢能项目广泛采用,因为系统灵活性、性能评估和组件优化是关键需求。
电解槽制造
借助 H2Gatech 先进的水电解技术,加速向绿色氢能的转型。我们生产高性能 PEM 水电解槽,旨在实现高效、稳定且可扩展的氢气生产。我们的电解槽系统能够将可再生电力转化为清洁氢气,助力构建低碳可持续的能源未来。
H2Gatech 电解槽的设计兼顾高效性、耐用性和灵活的系统集成,能够满足示范项目、工业氢气生产和能源规模应用的需求。与 H2Gatech 合作,利用我们为长期性能而打造的可靠电解解决方案,加速您的氢气生产项目。
| 项目 | H2G-20 | H2G-30 | H2G-40 | H2G-50 |
|---|---|---|---|---|
| 氢气产量 | 20 m³/h | 30 m³/h | 40 m³/h | 50 m³/h |
| 氧气产量 | 10 m³/h | 15 m³/h | 20 m³/h | 25 m³/h |
| 膜电极尺寸 | 420 × 420 mm | 420 × 420 mm | 420 × 420 mm | 420 × 420 mm |
| 单池片数 | 20 | 30 | 40 | 50 |
| 工作电流 (DCA) | 2646 | 2646 | 2646 | 2646 |
| 工作电压 (DCV) | 36–50 | 54–75 | 72–100 | 90–125 |
| 氧气进口 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 |
| 氧气出口 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 |
| 氢气出口 | 3/4"(英寸)× 2 | 3/4"(英寸)× 2 | 3/4"(英寸)× 2 | 3/4"(英寸)× 2 |
| 氧气侧耐压 | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa |
| 氢气侧耐压 | ≤ 1.6 MPa | ≤ 1.6 MPa | ≤ 1.6 MPa | ≤ 1.6 MPa |
| 水泵流量 | 112 L/min (需氧气出口压力 ≥ 0.1 MPa) | 168 L/min (需氧气出口压力 ≥ 0.1 MPa) | 224 L/min (需氧气出口压力 ≥ 0.1 MPa) | 280 L/min (需氧气出口压力 ≥ 0.1 MPa) |
| 工作温度 (°C) | 40–60 | 40–60 | 40–60 | 40–60 |
| 能耗 | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ |
| 水质要求 | 超纯水 ≥ 15 MΩ | |||
| 使用寿命 | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h |
| 产品尺寸 (mm) | 746 × 860 × 321.5 | 746 × 860 × 383 | 746 × 860 × 444.5 | 746 × 860 × 506 |
| 项目 | H2G-80 | H2G-100 | H2G-200 | H2G-250 |
|---|---|---|---|---|
| 氢气产量 | 80 m³/h | 100 m³/h | 200 m³/h | 250 m³/h |
| 氧气产量 | 40 m³/h | 50 m³/h | 100 m³/h | 125 m³/h |
| 膜电极尺寸 | 760 × 420 mm | 760 × 420 mm | 760 × 420 mm | 760 × 420 mm |
| 单池片数 | 40 | 51 | 102 | 127 |
| 工作电流 (DCA) | 4788 | 4788 | 4788 | 4788 |
| 工作电压 (DCV) | 72–100 | 91.8–127.5 | 183.6–255 | 228.6–317.5 |
| 氧气进口 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 |
| 氧气出口 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 | 77.5 卡箍 |
| 氢气出口 | RC1 × 2 | RC1 × 2 | RC1 × 2 | RC1 × 2 |
| 氧气侧耐压 | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa | 0–0.5 MPa |
| 氢气侧耐压 | ≤ 1.6 MPa | ≤ 1.6 MPa | ≤ 1.6 MPa | ≤ 1.6 MPa |
| 水泵流量 | 201.5 L/min (需氧气出口压力 ≥ 0.2 MPa) | 331.5 L/min (需氧气出口压力 ≥ 0.2 MPa) | 663 L/min (需氧气出口压力 ≥ 0.2 MPa) | 825.5 L/min (需氧气出口压力 ≥ 0.2 MPa) |
| 工作温度 (°C) | 40–60 | 40–60 | 40–60 | 40–60 |
| 能耗 | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ | ≤ 4.4 kWh/Nm³ |
| 水质要求 | 超纯水 ≥ 15 MΩ | |||
| 使用寿命 | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h | ≥ 50,000 h |
| 产品尺寸 (mm) | 1104 × 1036 × 465 | 1104 × 1036 × 598.3 | 1104 × 1036 × 938 | 1104 × 1036 × 1104.5 |
